Stanchion sockets aren’t the kind of thing anyone gets excited about — until you’ve spent years kicking your toes on stainless steel bases bolted proud of the deck, catching lines on them, watching them collect salt and grime in every corner. The fix on Paikea was to move away from that entirely: internally recessed carbon sockets, flush with the deck, holding onto stainless steel stanchions rather than bolted metal bases sitting on top of it. It’s a genuinely race-boat approach to a cruising problem, and it makes a real difference to how clean the deck actually looks and feels underfoot. Not to mention solving the leaking issue that comes with bolted on sockets.

Making the Mould

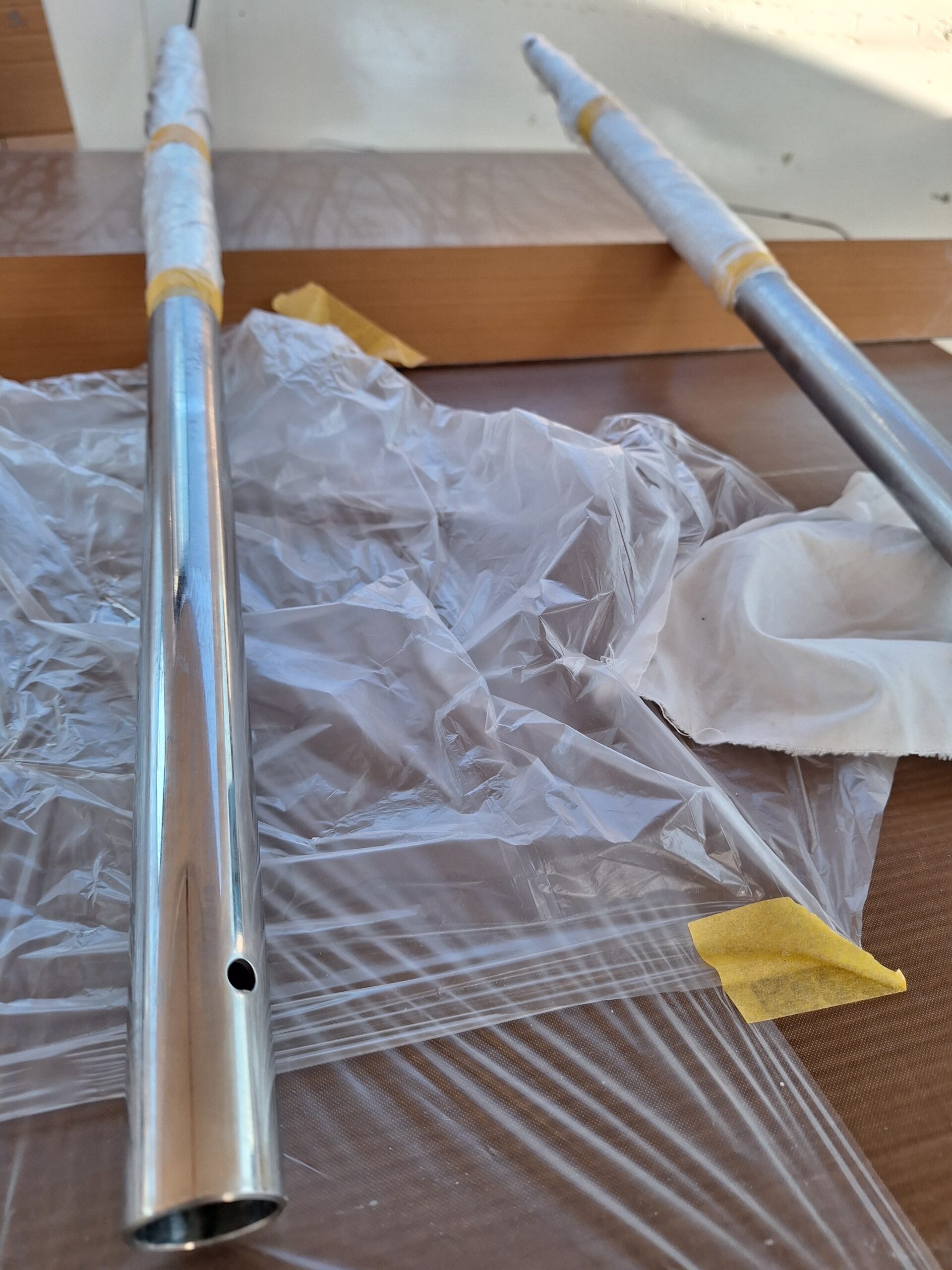

Building the sockets started with the stanchions themselves — wrapped at the base in a layer of E-glass, specifically to isolate them from the carbon tube they’d eventually live inside. That isolation matters for the same reason it always does with dissimilar materials: stopping galvanic reaction between the carbon and the stainless steel over years of saltwater exposure.

Getting a clean mould release meant a specific technique worth understanding if you’re doing anything similar. A sprayable release wax went on first, then the epoxy laminate itself — but the real trick was thermal. Warming the stainless steel while the resin was still liquid causes it to expand slightly; cooling it afterward makes it contract again, creating just enough clearance to slide the finished part free. The wax itself is only rated to 100°C, so the balance is getting the metal warm enough to help release without pushing past that ceiling — cross that line and the wax melts into the stainless rather than releasing from it, and the whole part ends up bonded to the mould instead of separating from it. Once warmed and released properly, sliding the finished socket off the mandrel turned out to be genuinely easy — twist, and it comes straight off.

Draining, Gusseting, and Distributing Load

The finished socket does more than just hold a stanchion. Each one includes a small 3D-printed drain fitting at the base, connected to a small carbon tube that drains water out the side rather than letting it pool inside the socket. Even with a tight, well-fitted stainless stanchion, some saltwater inevitably works its way in over time — draining it out overboard avoids the crevice corrosion that’s a known issue with stainless in a wet, enclosed space. Race boats generally sidestep this altogether by using S-glass or titanium stanchions, which don’t suffer from crevice corrosion in the first place — but with stainless still the material of choice here for other reasons (more on that below), drainage is the practical answer.

Each socket also carries a gusset running from the socket itself up into the topsides — a structural detail that does two jobs at once. It stops the socket from rocking under load (stanchions get pushed and pulled at deck level constantly, and without that gusset, the top of the socket wants to rotate while the base stays fixed), and it spreads the load being applied to the socket across a much larger area of the surrounding deck. That second point matters more than it might seem: composites are genuinely poor in peel loading, so the goal is a bonded area that’s both large and appropriately stiff, so the load transitions smoothly from a concentrated point at the stanchion into the wider deck structure rather than trying to peel the socket edge away from the laminate. The landing area is built stiffer through most of its footprint, then tapered down to a single thin layer at the outer edge — stiff enough near the load to resist peel, flexible enough at the margin to avoid a hard structural transition.

Not every stanchion location on the boat sees the same loading environment, either. One socket sitting close to a forward bulkhead benefits from genuinely stiff surrounding structure — load into that stanchion barely registers as movement elsewhere. Another location sits in a comparatively unsupported panel next to a hatch cutout, where the deck itself has more give, meaning a stanchion there moves slightly under load — not because the socket has failed, but because the whole panel it’s mounted to flexes. That’s a separate, genuinely open question about global deck stiffness in that region, worth solving with either a stiffener or reconsidering the hatch itself, rather than something a stronger socket alone can fix.

In an ideal design, stanchion sockets would line up directly with bulkhead positions, allowing the load to bond straight into a bulkhead rather than into a deck panel alone — genuinely the strongest possible arrangement. That kind of alignment tends to happen naturally on boats in the 40-50ft range, where typical bulkhead spacing and stanchion spacing rules both land in a similar range. On Paikea, the layout was already fixed by earlier design decisions, so that ideal alignment wasn’t available — a reasonable constraint to work within rather than fight.

Why Sockets, and Why Not Carbon Stanchions

The reasoning behind this whole approach traces back to real testing history, not just intuition. Back in 2012, as boats began moving away from simple metal deck sockets toward lighter composite attachment systems, a wave of failures prompted serious study into what was actually going wrong. Testing carried out by Fred Barrett Yacht Design and Brett Van Munster (of Van Munster Boats, builders of the 18-foot skiffs) established a clear principle: a socket supporting a stanchion should always be the stronger of the two components. Because it’s a larger-diameter part supporting a smaller-diameter one, the stanchion should fail first if something goes wrong — not the socket. A socket that fails first risks tearing a hole straight through the deck, which is a far worse outcome than a bent stanchion.

That same testing ruled out one specific configuration outright: a protruding composite spigot design, where a smaller-diameter glass spigot supported the stanchion base. Tested against stainless steel stanchions, the spigot failed before the stanchion even deformed — a clear sign that geometry, not just material choice, matters enormously here.

The material comparison itself produced a genuinely striking result. S-glass stanchions, tested against a 52kg tip load benchmark (drawn from balustrade safety design standards, the same logic used for railings on buildings), proved essentially impossible to break in testing — dramatically stronger than required. Stainless steel stanchions passed the same benchmark too, but with a real design consequence: since stainless won’t fail easily either, the socket and hull structure around it has to be built strong enough to handle a stanchion that simply isn’t going to give first.

Materials matter just as much for how they fail as whether they fail. Carbon fibre stanchions are explicitly not recommended here, despite being strong: carbon takes load right up until it doesn’t, then fails suddenly and completely, with little warning and no useful bent-but-functional state afterward. Stainless steel, by contrast, tends to bend and stay bent under overload — not ideal, but it typically remains a usable lifeline barrier rather than disappearing entirely. S-glass sits in a genuinely favourable middle ground: nearly as strong as carbon, but failing progressively rather than catastrophically — the resin cracks and gives while the fibre and cloth largely hold together, meaning some structural integrity survives even past the point of failure.

image of composite stanchion vs stainless steel stanchion bend test under load

A note on spigots: it’s worth being precise here — a poorly engineered pultruded spigot with unidirectional fibres is the specific failure mode World Sailing’s testing identified. A properly engineered quasi-isotropic spigot can work. The distinction matters if you’re evaluating an existing design rather than starting from scratch.

Chafe Protection for Dyneema Lifelines

One detail easy to overlook: wherever a Dyneema lifeline passes through or around a stanchion, the radius matters enormously. A sharp edge — even a thin-walled hollow tube with no smooth radius — will cut straight through Dyneema line over time as it works back and forth under normal sailing loads. The fix is a smooth carbon tube through the stanchion at that point, giving the line a proper bearing surface rather than an edge to saw against.

Real-world evidence backs this up directly. Paikea’s existing stainless stanchions, in service for five years with Dyneema lifelines, show genuinely minimal wear where a sharp factory edge was deliberately filed down to a soft radius early on — chafe tape at that point hasn’t even worn through. Where the ferrule geometry is less generous, some flattening of the Dyneema weave is visible, but even there, the cover hasn’t worn through. It’s a small detail, easy to dismiss, that makes a real long-term difference to lifeline longevity.

Standards and Real-World Load Testing

Two reference standards are worth knowing if you’re setting up or evaluating a lifeline system yourself. World Sailing’s Offshore Special Regulations cover synthetic versus wire lifelines and vary requirements by racing category — genuinely useful as a reference, and one that’s actively evolving as boat design changes (recent seasons have had to account for things like large chamfered bow panels on monohulls redefining what counts as “deck”). ISO standards cover the broader structural design side, including the baseline expectation that a safety rail withstand a 52kg load applied from the top, pushing in and out.

Beyond the standards, Paikea’s own stanchions got a genuine real-world test: rigged to a jig with scales, loaded first to the minimum required benchmark to confirm return-to-shape behaviour, then pushed to a full 58kg to see what would actually happen. The result was reassuring — the base deformed slightly, but nothing broke or buckled catastrophically, giving real confidence that the composite socket system underneath would hold up to genuine service loads, not just calculated ones.


Technical References and Download

ISO – Standards ISO 15085:2024(en) Small craft Protection from falling overboard and means of reboarding

Other sources to cover this topic that are North American related is the ABYC H-41 REBOARDING MEANS, LADDERS,HANDHOLDS, RAILS AND LIFELINES

World Sailing https://www.sailing.org

Fred Barrett Yacht Design https://fb-yd.com/

Brett Van Munster https://vanmunsterboats.com/

Matthew Smith https://csparnz.com/


In This Series

This post is part of our stanchion sockets deep dive. Read the full story here: Paikea’s Stanchion Sockets: The Full Story

Or explore the rest of the series:

In the Members Library

The full build video series is on our YouTube channel, plus an extra video on load testing the sockets on Paikea, and the 3D print file for the drain fitting used in every socket. See behind the scenes on the members page.
